ELEGOO Mars: Assemble the Platform

If your Mars printer needs to assemble the platfrom, please follow the steps below:

Tools you need: New Platform, 1.5mm Allen Wrench, 3.0mm Allen Wrench

Step 1: Disassembly

1.1  Loosen the m6*5 screws with the 3.0mm Allen Wrench

1.2  Unscrew the Jimmy screw with the 1.5mm Allen Wrench, then pick out the spring.

Step 2: Reassembly

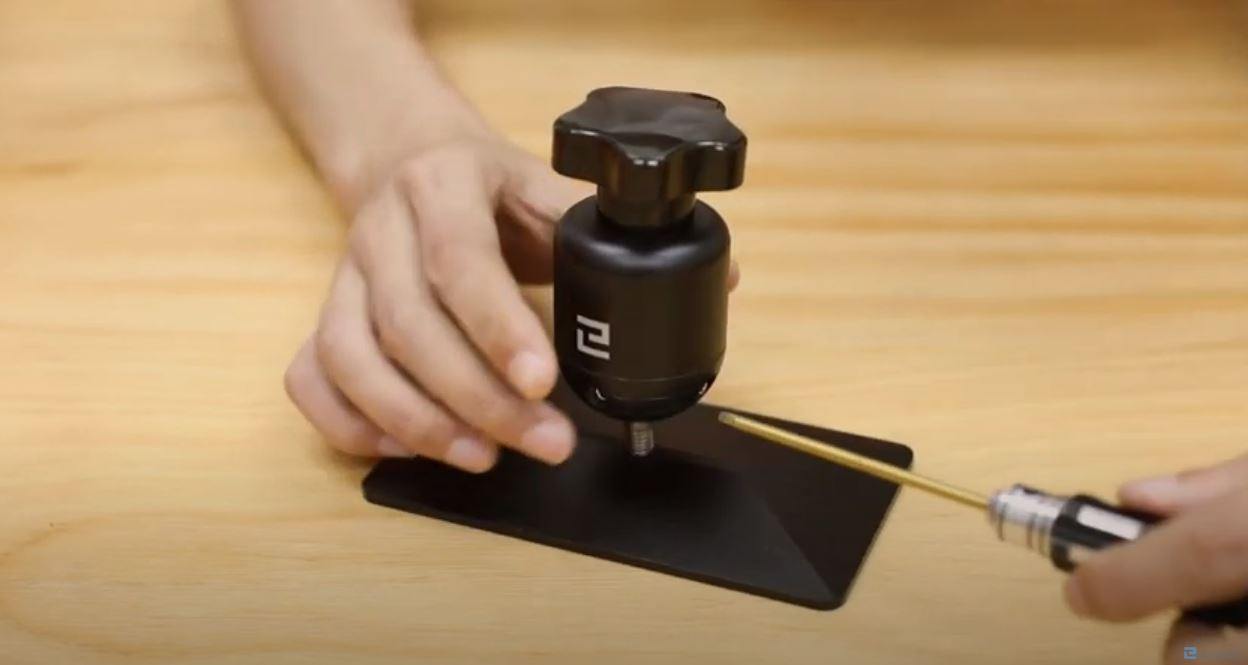

2.1  Put the screw, spring and the platform back in, then tighten the Jimmy screw with the 1.5mm Allen Wrench.

INSTRUCTIONAL VIDEO
