Description

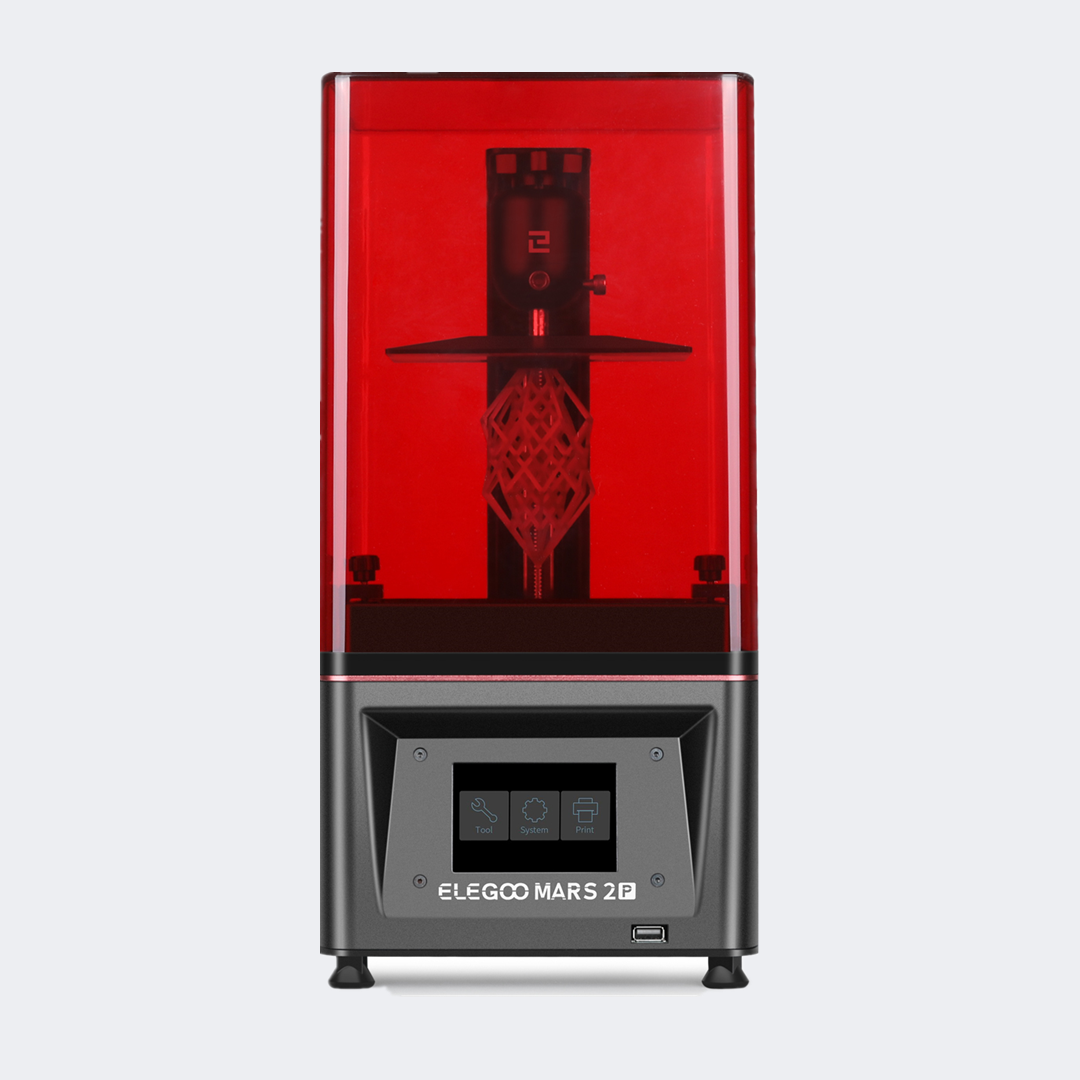

• 【Fast Printing and less maintenance】Mars 2 Pro comes with a 6.08-inch monochrome LCD of 2K HD resolution and only takes 2 seconds per layer exposure to cure resin, which could significantly enhance your printing efficiency. Mono LCD has a much longer lifespan and stable performance during long-term printing thus saves your cost.
• 【Outstanding prints and ultra accurcy】Brand new light source structure provides more even UV light emission and working together with 2K mono LCD, the printing details and precision are greatly improved and the 3D printed models are fascinating.
• 【Sturdy build quality】CNC machined aluminum body makes Mars 2 Pro a very formidable machine. A newly-designed sandblasted build plate has a much stronger adherence during printing and enables consistent printing success. Built-in active carbon could absorb the fume of resin and offer you a refreshing printing experience.
• 【Multi language interface】Mars 2 Pro now supports 12 kinds of languages so customers across the world could operate the 3D printer more conveniently without barriers. The newly added 10 languages are Japanese, Dutch, Korean, French, German, Russian, Italian, Spanish, Turkish, and Portuguese.
• 【Warranty and Service】We provide a 1-year warranty on the whole printer and a 6-month warranty for the 2K LCD (FEP film is excluded). Mars 2 Pro comes with 2 extra FEP films for you to replace the original one if needed.

Technical Specifications System: EL3D-3.0.2 Slicer Software: ChituBox Technology: UV Photocuring Layer Thickness: 0.01-0.2mm Printing Speed: 30-50mm/h Z Axis Accuracy: 0.00125mm XY Resolution: 0.05mm(1620*2560) Build Volume: 5.08in(L)*3.15in(W)*6.30in(H) 129mm(L)*80mm(W)*160mm(H) Light Source: UV Integrated Light (wavelength 405nm) Languages: Chinese English Japanese Dutch Korean French German Russian Italian Spanish Turkish Portuguese Connectivity: USB Weight: 13.67lbs(6.2kg) Operation: 3.5 Inch Touch Screen Power Requirements: 100-240V 50/60Hz Printer Dimensions: 7.87in (L)*7.87in (W)*16.14in (H) / 20cm (L)*20cm (W)*41cm (H)

Finish Kit Includes

Resin Tank * 1 Build Platform * 1 Metal Scraper * 1 Plastic Scraper * 1 User Instruction * 1 Mask * 2 Glove * 3 Funnel * 10 UL Adapter * 1 U Disk(2 GB) * 1 Backup Screws * 1 Measuring Cup * 1 Silicone rubber seal*1



2K Monochrome LCD ELEGOO Mars 2 Pro MSLA 3D Printer comes with a 6.08-inch Monochrome LCD that has 2K HD resolution. It is four times longer in lifespan and two times faster in printing speed than the regular RGB LCD 3D printers, which means higher printing efficiency, more stable performance, and less maintenance.	Multi-language Interface The new operating system now supports 13 different languages: Chinese, English, Japanese, Dutch, Korean, French, German, Russian, Italian, Spanish, Turkish, and Portuguese, which significantly facilitates worldwide users to use Mars 2 Pro more conveniently.	Built-in Active Carbon Like Mars Pro, Mars 2 Pro keeps this function as well, so you can enjoy the same refreshing printing experience. Built-in activated carbon could absorb the fume of resin. Working together with the turbo cooling fan and silicone rubber seal, you can barely smell any irritant odor.
CNC Machined Aluminum Unlike other plastic printers you may find on the market, Mars 2 Pro is made of CNC machined aluminum from build platform to resin vat. It has a very solid build quality and high durability like a reliable workhorse that always gets its work done.	COB UV LED Light Source Excellent heat dissipation performance, high luminous maintenance rate, uniform light emission, and no spots. COB light source has proved itself to be a fantastic upgrade that ensures each printing comes out perfectly.	Chitu Box Slicer Chitu Box has been a very helpful companion when you are using ELEGOO MSLA resin 3D printers from slicing .stl file to adding supports. With the latest 8-times anti-aliasing function, you can get a much smoother printing surface.

Description

• 【Dual Function】Wash and Cure 2 in 1 design makes washing and curing for 3D printed models realized in one machine. The operating process is now more efficient with less effort to meet your different needs.
• 【Fexible Washing Mode】The models can be placed in the cleaning basket to clean separately, or mount the build plate with models on it and wash them together, which can avoid direct contact to the uncured resin. The height of the platform bracket can be adjusted to fit the liquid level in the bucket.
• 【Intelligent Curing Control】Built-in 8pcs 385nm plus 8pcs 405nm UV curing lamp beads, work together with the 360-degree rotating curing turntable, which can cure the models evenly. 0.96 inch TFT LCD screen can visually display the set time and the remaining time. With automatic protection, picking up the cover in the operating state will suspend operation and emit a beeping sound. The cover can block 99.95% of ultraviolet rays to protect your vision.
• 【Ideal Compatity 】Compatible with most of the LCD/DLP/SLA 3D printers like ELEGOO Mars, Mars Pro, Mars C, photon, photon s on the market, which provides you ideal support for your 3D resin prints.

ELEGOO Mercury Plus 2 in 1 Washing and Curing Machine

Wash and Cure 2 in 1 design makes washing and curing for 3D printed models realized in one machine. The operating process is now more efficient with less effort to meet your different needs.

It is compatible with most of the LCD/DLP/SLA 3D printers like ELEGOO Mars, Mars Pro, Mars C, Mars2， Mars 2 Pro on the market, which provides you ideal support for your 3D resin prints.

Technical Specification: Machine Name: ELEGOO Wash & Cure Machine Control Method: Touch button Rated Power: 48W Input Voltage: 110V/220V 50/60H UV Light: 385nm+405nm（8+8） Time Setting: 0-15mins Machine Size: 200mm*200mm*352mm Maximum Wash Volume: 125mm*85mm*160mm Maximum Curing Size: φ140*165mm Machine Net Weight: 4.8kg Cure Time: If model diameter less than 30 mm, the curing time is recommended to be 2 minutes. If the surface structure of the model is complex, it is recommended to increase the curing time properly. Special Notes: The washing function is not quite suitable for 3D models printed with water washable resin, which is better to be washed with running water.

Operation Instructions:

Washing with Printing Platform If the printed model is not removed from the build platform, please mount the build platform to the adjustable platform bracket (The height of the platform bracket can be adjusted to fit the liquid level in the bucket, up to a maximum model height of 120 mm), then hang the adjustable platform bracket on top of the pillar to start the cleaning.	Washing with Bucket If the printed model has been removed from the build platform already, you will need to place the model in the cleaning basket (maximum model height is 160 mm) and hang the cleaning basket on top of the pillar to start cleaning the model. Models larger than 15 mm in size are available with this cleaning option.	Intelligent Curing Control Place the curing turntable firmly against the turntable positioning hole and place the model in the center of it. Cover the anti-UV lid which can block 99.95% of ultraviolet rays to protect your vision. Operating with the sensitive touch button and 0.96 inch TFT LCD screen, you can easily set and monitor the time. The machine will beep when the curing is done.
The height of the platform bracket can be adjusted to fit the liquid level in the bucket to make the models to be cleaned completely.	Powerful UV Light of the built-in 8pcs 385nm and 8pcs 405nm UV curing lamp beads to cure the model fast.	The 360-degree rotating turntable work with UV light can make the models to be cured perfectly.

Description

• 【Higher Precision and Excellent Performance 】Z-axis utilize linear guideway structure, which can achieve steadier motion and greatly enhanced moving accuracy to reduce the layer lines on the 3D printed model and make the surface much smoother. The set screws of the build plate are now upgraded to larger anti-slip hexagon socket screws, which have a more stable leveling result. CNC turning CD pattern on the build plate provides a much stronger adherence, especially when printing large 3D models.
• 【 Refreshing and Safer Experience】Mars Pro comes with a silicone rubber seal that can be put on the cover to prevent the resin odor from leaking and keep them inside the cover. Built-in activated carbon can absorb and filter the resin odor before they are ventilated throughout the cooling fan, which gives you a refreshing and safer user experience
• 【Light and Convenient 】Remodeled resin vat made of aluminum alloy is light yet sturdy. The USB port is relocated to the front for your convenience. Mars Pro uses a new user interface with a dark theme and a simple design.
• 【Quality Prints and Consistent Success】Matrix light source consists of 28 50Watt UV LED lights that have uniform light emission, ensuring superior printing results, a more accurate printing size, and saves your time by 25% in layer exposure time. Mars Pro is the first resin-based 3D printer to use the sliced file of .ctb format, which reduces the file size by an average of 90% compared to .cbddlp format and significantly increased the printing success rate when printing bigger models.
• 【Warranty and Privilege 】We provide a 1-year warranty on the whole printer and a 6-month warranty for the 2K LCD (FEP film is excluded). Parts and replacements will be shipped from the overseas warehouse to offer you quality and fast customer service. Mars Pro also comes with a Myminifactory Membership Card, which gives you the privilege to millions of curated 3D objects to start your first printing on Mars Pro.

Ever since ELEGOO Mars launched from the first day, we have received a lot of compliments as well as critical reviews. What can we improve from ELEGOO Mars to make it more perfect and easy to use?

To learn from the great ideas and give back to the community, we now proudly present you the MARS PRO.



Mars PRO Printing Specification Technology: LCD UV Photocuring Light Source: UV Integrated Light (wavelength 405nm) XY Resolution: 0.047mm (2560*1440) Z Axis Accuracy: 0.00125mm Layer Thickness: 0.01-0.2mm; Printing Speed: 22.5mm/h Power Requirements: 110-220V 50/60Hz 12V6A 72W Printer Dimensions: 7.87in (L) * 7.87in (W) * 16.14in (H) Build Volume: 4.53in (L) * 2.56in (W) * 5.9in (H) Weight: 16.5Lbs (7.5Kg) Printing Parameter: System: EL3D-3.0.1 Operation: 3.5 Inch Touch Screen Slicer Software: Chitu Box Printing Method: USB off-line printing

Rubber Seal & USB Port Mars Pro comes with a silicone rubber seal that can be put on the bottom of the cover to prevent the resin odor from leaking, in addition, thanks to the rubber seal, Mars Pro is in low noise when printing. What’s more, the USB port is relocated to the front for your convenience.	Matrix UV LED Light Source Matrix light source consists of 28 50Watt UV LED lights that have uniform light emission, ensuring superior printing results, a more accurate printing size, and saves your time by 25% in layer exposure time. Now it only needs 45s to cure the first layer, and 6s for the others.	Upgraded User-friendly Design Mars Pro uses a new user interface with a dark theme and simple design. Remodeled resin vat, made of aluminum alloy, is light yet sturdy. Set screws of the building plate were changed to anti-slip hexagon socket screws to provide a more stable and long-lasting leveling result.

CD Pattern Build Plate Mars Pro adopts an upgraded 0.15mm CD pattern surface which contributes to a higher success rate. With higher adhesiveness, CD patterns help make the prints stick more tightly to the plate.	Built-in Active Carbon Filter Built-in activated carbon can absorb and filter the irritant resin odor before they are ventilated throughout the cooling fan at a super adsorption rate, which gives you a fresh and safe user experience.	BGW15CA Linear Guideway Z-axis utilizes BGW15CA linear guideway structure with an accuracy of 0.02mm, which achieves steadier motion and greatly enhances moving accuracy to reduce the layer lines on the 3D printed model and make the surface much smoother.	New Sliced File Format Mars Pro is the first resin-based 3D printer to use the sliced file of .ctb format, which reduces the file size by an average of 90% compared to .cbddlp format and significantly increases the printing success rate when printing bigger models.

Description

• 【Fast Printing and less maintenance】Mars 2 comes with a 6.08-inch monochrome LCD of 2K HD resolution and only takes 2 seconds per layer exposure to cure resin, which could significantly enhance your printing efficiency. Mono LCD has a much longer lifespan and stable performance during long-term printing thus saves your cost.
• 【Outstanding prints and ultra accurcy】Brand new light source structure provides more even UV light emission and working together with 2K mono LCD, the printing details and precision are greatly improved and the 3D printed models are fascinating.
• 【Sturdy build quality】CNC machined aluminum body makes Mars 2 a very formidable machine. Newly-designed sandblasted build plate has a much stronger adherence during printing and enables consistent printing success.
• 【Multi language interface】Mars 2 now supports 12 kinds of languages so customers across the world could operate the 3D printer more conveniently without barriers. The newly added 10 languages are Japanese, Dutch, Korean, French, German, Russian, Italian, Spanish, Turkish, and Portuguese.
• 【Warranty and Service】We provide a 1-year warranty on the whole printer and a 6-month warranty for the 2K LCD (FEP film is excluded).

Description

• 【Fast Slicing Software】ELEGOO Mars comes with the latest version of CHITUBOX Slicing Software which gives you an extraordinary user experience. CHITUBOX takes only 1 minute to slice 30Mb .stl model files while the open-sourced slicing software would take up to 10minutes.
• 【Resin saving and Better Printing】CHITUBOX allows you to hollow out your model before slicing which could save your resin dramatically during the photocuring process. Equipped with 40W UV lights and using ELEGOO resin, you can get a better printing result.
• 【Smart and Convenient】3.5'' inch color touch screen equipped with the latest ELEGOO CHITUBOX 5.5 system makes it very easy for off-line printing. The build platform with steel ball balancing structure inside allows you to start printing within 5 minutes after assembly.
• 【High Precision and Resolution】ELEGOO Mars uses a 2560x1440 2K HD masking LCD to provide accurate printing with XY axis resolution of 0.00185inches / 0.047mm
• 【Warranty and Service】We provide a total one-year machine warranty (3-month warranty for FEP and 2K LCD consumable parts) and if you have any questions regarding product operation or software please feel free to contact us

ELEGOO has been manufacturing 3D printer components and parts since 2014 and with years of experience in 3D printing, we finally developed our own 3D printer using UV photocuring technology. We'd like to present to you our very first photocuring LCD 3D Printer- ELEGOO Mars.

Great industrial design and user-friendly system, we make ELEGOO Mars suitable for anyone to use even though you have never used a 3D printer before.

The semi-assembled printer will save your time setting up when you receive it and within 5 minutes you could start printing your first model we provided – 2 rooks, which could be easily sliced using our newly released CHITUBOX slicing software.

Mars Printer Tech. Specs System: ChiTu L5.5 Series Operation: 3.5 Inch Touch Screen Slicer Software: ChiTu DLP Slicer Connectivity: USB Printing Technology: LED Display Photocuring Light Source: UV Integrated Light(wavelength 405nm) XY Resolution: 0.047mm(2560*1440) Z-Axis Accuracy: 0.00125mm Layer Thickness: 0.01-0.2mm Printing Speed: 22.5mm/h Power Requirements: 110-220V, 12V5A 60W Build Volume: 4.72*2.68*6.1 inches



Package List
ELEGOO MARS 3D Printer comes with a simple yet well-protect package box which contains all the necessary parts you need to start a perfect printing

• MARS 3D PRINTER * 1
• Build Platform * 1
• Resin Tank * 1
• U Disk * 1 Tool Kit*1
• Measuring Cup * 1
• Mask * 1； Gloves * 3
• Funnel * 10 ；Scraper * 1
• UL Adapter 60W * 1
• User Instruction * 1

Description

Product Description

ELEGOO Mercury UV Curing Machine outputs steady, focused and consistent UV lights to cure the models printed with photopolymer resins 360°. The post-curing process increases the hardness and durability of the printed products

Operation Instructions: Please do not take away the box cover while the machine is working. To avoid overheating of the curing cabinet, please do not use it for more than 40 minutes at a time. After the model is printed, please clean and blow-dry the model before putting it into the curing machine. The recommended ambient temperature is 0-40 degrees, and the ambient humidity temperature is 20%-50%. If the model becomes yellow after curing, please adjust the curing time. Over curing will lead to a yellowing model.

Product Parameters:

Product Name: ELEGOO MERCURY Curing Machine

Control Method: Touch-sense Key Controller; LED Lamp: 405nm

Rated Power: 25W; Input Voltage: 110V/220V 50/60Hz

Time Setting: 0-9mins30s

Machine Size: φ150*251. 5mm

Maximum Curing Size: φ142*150mm

Machine Net Weight: 1.35kg

The shell of ELEGOO Mercury curing machine is made of light yet sturdy aluminum alloy with a sandblasting oxidation surface. The cylinder structure design and 360° turntable enable printed objects to be covered with a full illumination range.	ELEGOO UV curing chamber comes with a reflective sheet stuck solidly inside. Thanks to the reflective sheet, the UV lights Mercury outputs are steady and focused so that it’s able to cure the printed models in a short period.	The see-through window with particular optical filtering material not only assists you to observe the curing process but also helps keep 100% UV light away from leakage to ensure a great curing result.

ELEGOO Mercury curing box features a real-time display screen. The LED time display enables you to control the curing time conveniently. In addition, the touch-sense buttons act quickly for you to easily adjust curing time from 0s to 9 mins30s.	The UV LED wavelength ranges of ELEGOO Mercury Curing machine are 405nm. It is compatible with ELEGOO resin and most standard 405nm resin, suitable for most LCD, DLP, or SLA 3D Printed objects in the market.	The light-powered turntable is able to absorb UV light to rotate without a battery. What’s more, ELEGOO Mercury curing box adopts two 405nm LED strip (14 UV LED lights in total) in order to fast cure and evenly illuminate printed models.

Description

• 【Faster printing speed】Saturn 3D printer comes with an 8.9inch 4K Monochrome LCD with an HD resolution of 3840 x 2400, reducing the layer printing time to 1.5s-2s, which is 60% faster than Mars Pro yet still delivers outstanding printing results.
• 【Larger build volume】Saturn has a large printing volume of 192*120*200mm/7.55in*4.72in*7.87in, and you can print multiple full-sized models at the same time, which can dramatically improve your productivity.
• Higher precision and easier printing】Z-axis utilizes a double linear guideway structure, which can achieve steadier motion and greatly enhanced moving accuracy. With the ethernet port on the back and a 4GB built-in data disk, Saturn now supports file transfer through your local area network, which is very handy for fast printing.
• 【Quality Prints and Consistent Success】Matrix light source consists of 54 UV LED lights with uniform light emission, ensuring superior print results and more accurate printing size. The set screws on the build plate assure long-lasting leveling, no need for frequent calibration, and the sandblasted surface provides a much stronger adherence, especially when printing large 3D models.
• We provide a 1-year warranty on the whole printer (4K LCD, FEP film, and tool kit excluded). Replacement parts will be shipped from the overseas warehouse to offer you quality and fast customer service.

Learn more about ELEGOO Saturn:

Parameters and Specification:

System: EL3D-3.0.1
Operation: 3.5 Inch Touch Screen
Slicer Software: Chitubox
Connectivity: USB
Technology: LCD UV Photocuring
Lightsource: UV Integrated LED lights (wavelength 405nm)
XY Resolution: 0.05mm(3840×2400)
Z Axis Accuracy: 0.00125mm
Layer Thickness: 0.01-0.15mm
Printing Speed: 30mm/h
Power Requirements: 100-220V 24V4A 96W
Printer Dimensions: 11.02in (L) * 9.44in (W) * 17.55in (H) 28cm(L) * 24cm (W) * 44.6cm (H)
Build Volume: 7.55in (L) * 4.72in (W) * 7.87in (H) 192mm (L) * 120mm (W) * 200mm (H)
Weight: 29.76 Lbs (13.5 Kg)

Finish Kit includes:

Description

ELEGOO FEP release film liner is specialized for ELEGOO MARS Series LCD 3D printer.
FEP film is a consumable accessories of LCD 3D printers and great quality is essential if you don’t want to change it too often.
To change your FEP film is very easy. Simply follow the tutorial comes with the package and with our new resin tank structure, you can easily replace the old FEP film in a few minutes.

How to change the FEP:

Description

• 【Outstanding industrial design】CNC machined aluminum extrusion and semi-assembled parts for reliable build quality and easy setup. V-guide roller made of Germany POM material with ultra-silence, accurate motion, and excellent wear resistance during long-term printing. 220X220X250mm printing size at ±0.1mm high precision. Supports multi-function extensions as well.
• 【Smarter 3D printing】Once a print is complete and the nozzle temperature drops below 50° Celsius, the cooling fans of the nozzle and the motherboard will automatically stop working, saving power and extending their lifespan. Resume printing from where it left after an unexpected power outage or faulty operations. MK8 extruder has wide material compatibility and equipped filament detection sensor will pause printing when filament runs out.
• 【Safe and stable power supply】400Watt switched-mode power supply can better protect your printing from short circuit, overload voltage, or under-voltage situations. The 250Watt hotbed can be heated to 100° Celsius within 3 minutes under an average indoor temperature and keeps it stable to meet different filament materials' working requirements.
• 【Intuitive and user-friendly experience】Multi-language user interface show the model preview and real-time printing progress. Large rotary nuts make leveling easier. The hotbed holds a replaceable fiberglass sheet with a matte Polycarbonate surface, which has a stronger adhesion and allows you to remove models without any hassle. 32bit motherboard with TMC2225 silent driver provides a quieter printing at 50db noise level and ensures consistent printing for 200 hours without any issues.
• 【Warranty and Service】We provide a 1-year warranty on the printer (nozzle and build plate sheet excluded) and lifetime technical support with fast response in customer service. If you need a replacement part, we will deliver it to you from the local warehouses giving you a better after-sales experience.
