Saturn Series Resin 3D Printers

Description

【10-Inch 12K Mono LCD】With a 10-inch 12K mono LCD boasting an incredible resolution of 11520x5120 and an XY resolution of 19x24μm, you can print highly detailed models with stunning clarity and precision. The 9H tempered glass above the LCD provides excellent durability and scratch resistance, effectively protecting the LCD screen from scratches and damage.

【Large Build Volume】With a spacious build volume of 218.88x122.88x260 mm³/8.62x4.84x10.24 inches, you can print larger objects with ease or multiple smaller models at once, increasing your productivity.

【Brand New Linux OS】ELEGOO Saturn 3 UItra is powered by a brand new Linux OS with 4G RAM, which guarantees stable file transfer and faster running speed, making your printing experience smoother and more efficient.

【Wi-Fi Transfer】Saturn 3 UItra supports Wi-Fi transfer of files, with transfer speeds of 6-10Mbps, and is compatible with both 2.4G and 5G networks, giving you the flexibility to transfer your files from your computer or mobile device with ease.

【Reliable Printing Performance】The printer's 4-point leveling system is easy to operate, and no need to repeat leveling after one leveling. The laser-engraved build plate provides excellent adhesion during the printing process and easy to remove models. The new ACF release liner film with less release tension for faster printing.

【User-Friendly Printing Experience】Saturn 3 UItra adopts a 4-inch HD IPS touch screen, with 800*480px and a new UI interface, and supports 12 languages.
The plug-in air purifier is connected via USB with a built-in activated carbon filter to absorb and filter resin odor during printing. The printer is also compatible with the upcoming ELEGOO Mars MATE air purifier.

Description

【10-Inch 12K Mono LCD】With a 10-inch 12K mono LCD boasting a stunning resolution of 11520x5120 and an XY resolution of 19x24μm, ELEGOO Saturn 3 is capable of producing highly detailed and intricate models with ease, at a printing speed of up to 70mm/h. The 9H hardness tempered glass protects the LCD screen from scratches and damage caused by resin dripping or penetration.

【Generous Build Volume】With a generous build volume of 218.88x122.88x250 mm³/8.62x4.84x9.84 inches, you can try to print larger models and more ambitious projects for greater flexibility and versatility.

【Fresnel Collimating Light Source】The COB light source and Fresnel collimating lens work together to emit a uniform light beam of 405nm wavelength, and ensure that the light angle reaches within 5°, light uniformity is over 90%, and light-scattering coefficient within 0.5%. This results in highly accurate and consistent prints with exceptional clarity and detail.

【Laser-carved Build Plate】The build plate with a laser-carved surface provides excellent adhesion, ensuring that your prints stick to the build plate for a higher printing success rate.

【Voxeldance Tango Software】It offers 3 printing modes: static mode and dynamic mode (including smooth mode and high-speed mode) to improve printing efficiency. The open-source GOO slice file format is compatible with third-party slice software, such as CHITUBOX and Lychee Slicer.

【Plug-in Air Purifier】The upgraded USB plug-in air purifier with a built-in activated carbon filter and plastic protective case ensures that harmful odor is purified during printing. In addition, you can choose the upcoming ELEGOO Mars MATE air purifier, which can remove up to 95% of VOCs for a safer environment to work in.

Description

 ELEGOO Saturn 2 adopts a 10-inch 8K mono LCD screen with an HD resolution of 7680x4320 and an ultra-fine XY resolution of 28.5 microns, outputting outstandingly detailed 3D models with a cure time of only 1-3s per layer. The scratch-resistant tempered glass above the LCD screen with 9H hardness for better light transmission and protection.

[43% Larger Printing Volume] With a build volume of 219x123x250mm / 8.62x4.84x9.84 inch and a 10” large mono LCD screen make the prototype size larger and the curing efficiency higher, you can print one larger model or multiple smaller models in a single batch.

[Fresnel Collimating Light Source] Fresnel collimating light source consists of 48 highly integrated UV LED lights that work with the FCL system Fresnel lens to emit a uniform light beam of 405nm wavelength with 92% light uniformity, excellent printing accuracy, and a more smooth surface finish.

[Reliable Printing Performance] The Z-axis is designed with dual linear rails and non-slip hexagon socket leveling screws for ultra-steady & accurate movement and remarkable printing performance. The sandblasted surface build plate provides much stronger adherence and PFA release liner with easier model removal and less release tension.

[Odor-free Printing Environment] The air filtration system with an activated carbon filter can absorb most of the resin odor, creating an odor-free fresh printing environment. Double heat-conducting copper heat tubes with faster heat transfer and better heat dissipation efficiency prolong the service life of 3D printers

Description

[10-Inch 8K Mono LCD] ELEGOO Saturn 8K resin 3d printer comes with a 10-inch monochrome LCD screen with a resolution of 7680x4320 and an XY resolution of 28.5 microns. You can print sharper models with ultra-fine detail and tight tolerances, only requiring 1-3s exposure time per layer. The scratch-resistant tempered glass above the LCD screen with 9H hardness has excellent light transmission and screen protection.
[Large Build Volume] The Saturn 8K’s build volume of 219 x 123 x 210 mm gives you quite a bit more space for model printing creations with even better quality, whether a large model or batch parts can be done in one go to improve your printing efficiency.
[Matrix UV Light Source] The 28 LEDs matrix UV light source with a unique double convex lens design reduces light scattering and provides powerful light contrast so that the light is vertically projected on the LCD screen at a smaller angle of 5 degrees, thereby improving printing accuracy and reducing tolerances for prototype print dimensions.
[Rock-Solid Structure] The Z-axis is driven by a pair of linear rails with non-slip hexagon socket leveling screws for more stable and accurate motion. Sandblasted build plate has stronger adhesion during printing and the PFA release liner (FEP 2.0) with less release tension for easier model removal.
[A Hassle-free Printing Experience] The USB-powered purifier with activated carbon absorbs and filters the unpleasant resin odor during operation to create a fresh printing environment. The heat dissipation system adopts double heat-conducting copper heat tubes for faster ventilation and heat dissipation.

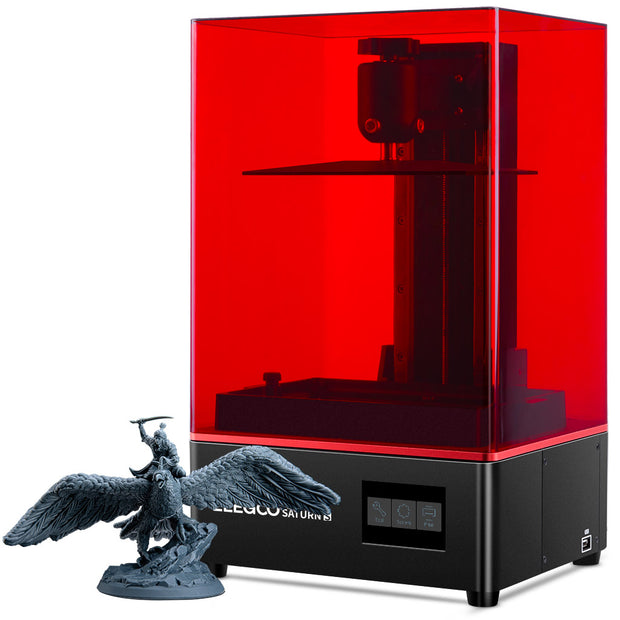

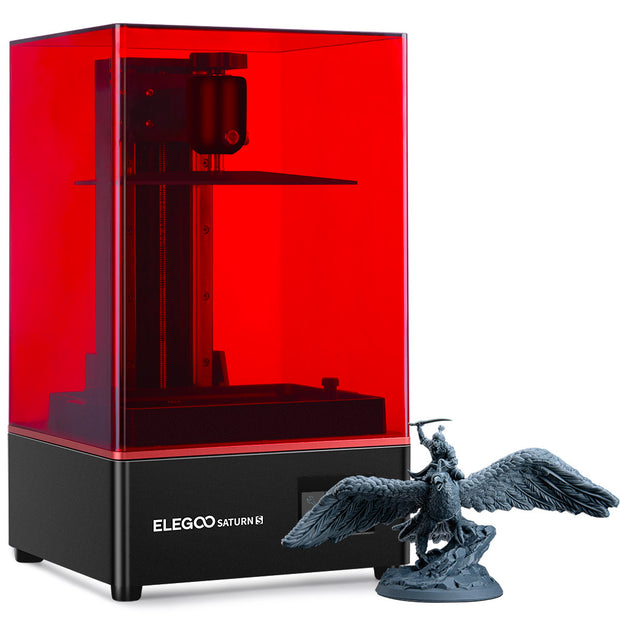

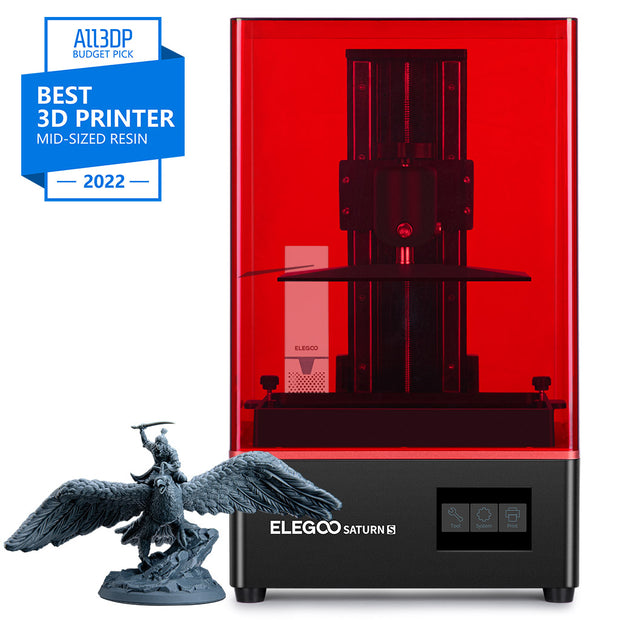

Description

[Faster Printing] Saturn S 3D printer comes with a 9.1-inch 4K HD Monochrome LCD of 4098 x 2560 resolution, which shortens the printing time per layer to 2s-3s while restoring the vivid details of the original models. Low energy consumption and heat emission extend the lifespan of the mono LCD by 3 times.

[Larger Build Volume] With a larger printing volume of 196mm*122mm*210mm/7.71in*4.80in*8.26in, you can print bigger complex structural parts, or multiple small 3D models at a time, which greatly increases your printing efficiency.

[Higher Printing Accuracy] The matrix light source of 54 UV LEDs emits an optimal uniform light beam of 405nm wavelength for rapid prototyping, ensuring a sleek and delicate surface of a 3D printed model and more accurate printing size.

[Super Stable Structure] The Z-axis adopts a double linear guide-way shock absorption unit, with an accuracy of 0.00125mm for more stable and accurate moving to reduce the risk of layer shifting. The build plate with sandblasted surface has a stronger adhesion, and the set screws on which have long-lasting leveling performance without frequent calibration.

[Pleasant Printing Experience] The replaceable activated carbon filter on the USB port can effectively absorb and filter the resin odor and pungent fumes, bringing you a refreshing printing experience.
