- Technical Specifications
Printing Parameter
- System: EL3D-3.0.1
- Operation: 3.5-inch Touch Screen

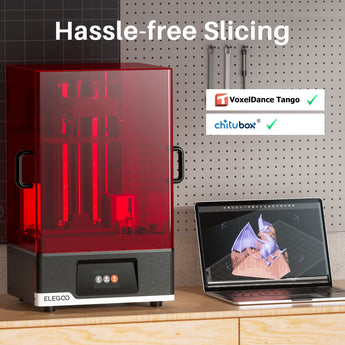

- Slicer Software: Chitu Box
- Connectivity: USB Interface
- Languages: Chinese, English
Printing Specification
- Technology: MSLA Stereolithography

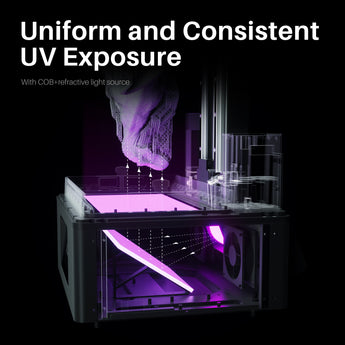

- Light Source: COB+Refractive Light Source (wavelength 405nm)
- XY Resolution: 51*51um (5448*3064)
- Z-axis Accuracy: 0.02mm
- Layer Thickness: 0.01-0.2mm
- Printing Speed: MAX 70mm/H
- Power Requirements: 100-240V 50/60 Hz 24V 7.5A
Hardware Specification
- Dimension: 479.9mm(L)*377.4mm(W)*657.5mm(H)

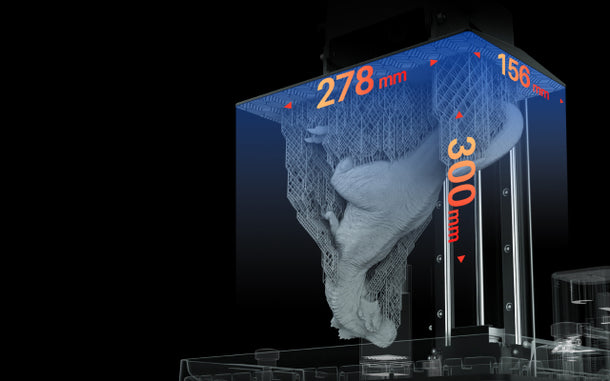

- Build Volume: 277.848mm(L)*156.264mm(W)*300mm(H)
- Package Size: 870mm(L)*495mm(W)*475mm(H)
- Gross Weight: 26.6KG
- Net Weight: 19.5KG
