Description

ELEGOO Mercury XS Bundle with Separate Washing and Curing Station for Large Resin 3D Printed Models, Compatible with Saturn and Mars LCD 3D Printers, with a Handheld UV Lamp

[360° all-round exposure] The post-curing station adopts 2 L-shape light bars (each built-in 14 UV LED lights), and added 4 UV LED beads beneath the turntable. Work with 360°auto-rotating turntable and a handheld UV lamp that cures the nooks and crannies and interior of 3D prints, so that the entire model is cured thoroughly without dead ends.

[Dual function of washing and curing]  ELEGOO Mercury XS contains 1 washing station and 1 post-curing station, with the dual function of cleaning and curing to remove uncured resin of 3D printed models and optimized your print quality, making your post-processing simple and efficient.

[Large washing volume] With an 7000ml large capacity sealed water tank, you can directly wash large models printed by ELEGOO Saturn and Mars 3, or clean parts in batches, which offers substantial time savings and improves your productivity.

[Easy and intuitive operation] With a single knob, just press and hold to turn on the machine, then rotate the knob to set an appropriate time for washing or curing, and your models will be ready in a short time. The UV cover can block 99.9% of ultraviolet rays and protect your eyesight during post-curing.

[Wide Compatibility] Directly compatible with ELEGOO Saturn or Mars 3 3D printers and the most similar build volume LCD/DLP/SLA 3D resin printers on the market, making your 3D resin print post-processing simple, professional, and efficient.

Description

[Transparent Yellow Shade] Effective blocking 99.9% UV light. The maximum size of the supporting printer is 9.1 inches

[Faye Mirror Design] The entire effective curing area, light power distribution more uniform.

[360 Degree Three-Dimensional Curing] Curing platform can be 360 Degree automatic rotation, curing size φ200 * 260mm.

[Bottom Light Source Design] The bottom to increase the light source design, the base can also be cured, do not let go of every detail, fully curing the model.

[Sealed Water Tank & Large-Capacity Design] 8000ML large-capacity design, using rubber sealing strips, safe and reliable.

[Operation Knob] Long press 3 seconds to turn on the machine, integrated operation panel plus light with, simple operation.

[Super Long Time Setting] Maximum adjustment of 30 minutes.

[Dual Connector Power Adapter] To meet the needs of CURE and WASH work at the same time.

[Curing Mode and Cleaning Mode Completely Separate] MERCURY X WASH and MERCURY X CURE can work at the same time, one for cleaning work and one for curing work.

Description

Description

• 【Dual Function】Wash and Cure 2 in 1 design makes washing and curing for 3D printed models realized in one machine. The operating process is now more efficient with less effort to meet your different needs.
• 【Fexible Washing Mode】The models can be placed in the cleaning basket to clean separately, or mount the build plate with models on it and wash them together, which can avoid direct contact to the uncured resin. The height of the platform bracket can be adjusted to fit the liquid level in the bucket.
• 【Intelligent Curing Control】Built-in 8pcs 385nm plus 8pcs 405nm UV curing lamp beads, work together with the 360-degree rotating curing turntable, which can cure the models evenly. 0.96 inch TFT LCD screen can visually display the set time and the remaining time. With automatic protection, picking up the cover in the operating state will suspend operation and emit a beeping sound. The cover can block 99.95% of ultraviolet rays to protect your vision.
• 【Ideal Compatity 】Compatible with most of the LCD/DLP/SLA 3D printers like ELEGOO Mars, Mars Pro, Mars C, photon, photon s on the market, which provides you ideal support for your 3D resin prints.

ELEGOO Mercury Plus 2 in 1 Washing and Curing Machine

Wash and Cure 2 in 1 design makes washing and curing for 3D printed models realized in one machine. The operating process is now more efficient with less effort to meet your different needs.

It is compatible with most of the LCD/DLP/SLA 3D printers like ELEGOO Mars, Mars Pro, Mars C, Mars2， Mars 2 Pro on the market, which provides you ideal support for your 3D resin prints.

Description

Product Description

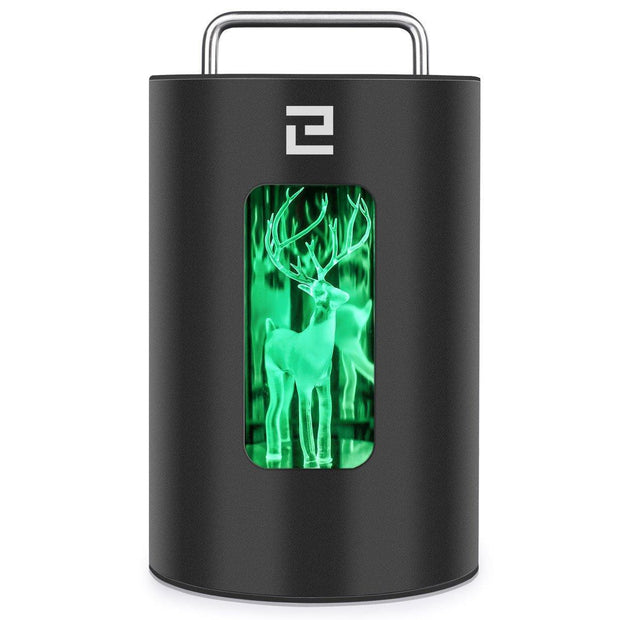

ELEGOO Mercury UV Curing Machine outputs steady, focused and consistent UV lights to cure the models printed with photopolymer resins 360°. The post-curing process increases the hardness and durability of the printed products

Operation Instructions: Please do not take away the box cover while the machine is working. To avoid overheating of the curing cabinet, please do not use it for more than 40 minutes at a time. After the model is printed, please clean and blow-dry the model before putting it into the curing machine. The recommended ambient temperature is 0-40 degrees, and the ambient humidity temperature is 20%-50%. If the model becomes yellow after curing, please adjust the curing time. Over curing will lead to a yellowing model.

Product Parameters:

Product Name: ELEGOO MERCURY Curing Machine

Control Method: Touch-sense Key Controller; LED Lamp: 405nm

Rated Power: 25W; Input Voltage: 110V/220V 50/60Hz

Time Setting: 0-9mins30s

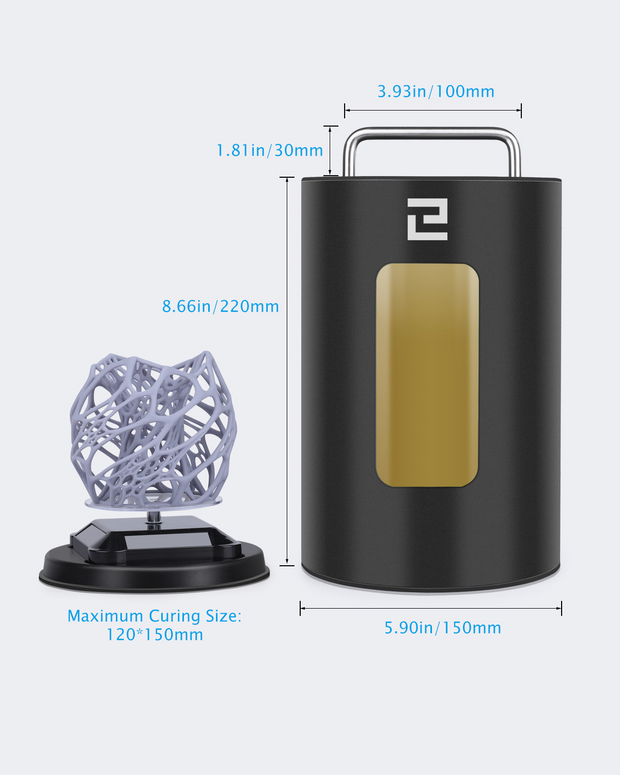

Machine Size: φ150*251. 5mm

Maximum Curing Size: φ142*150mm

Machine Net Weight: 1.35kg

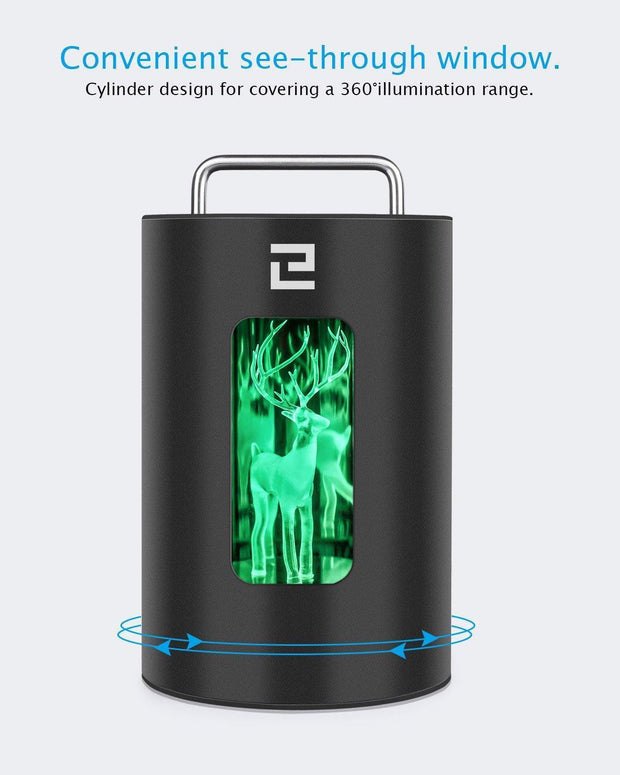

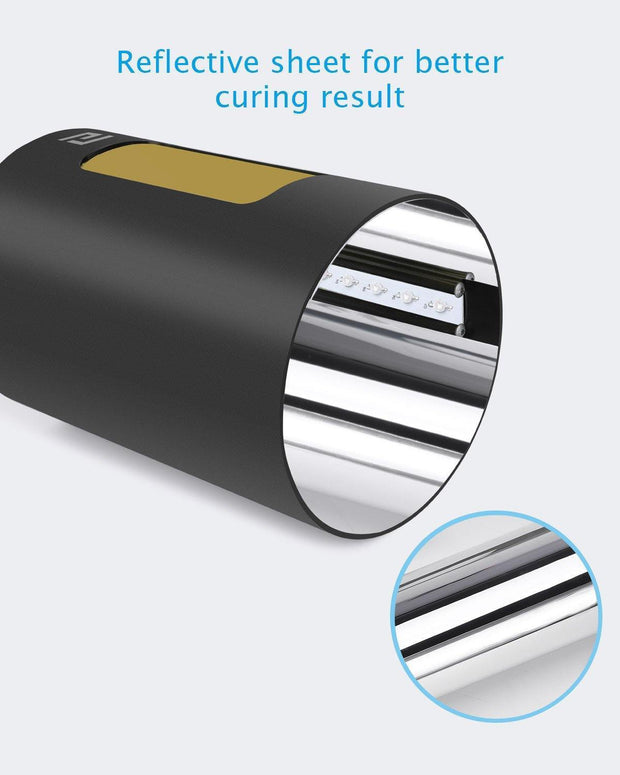

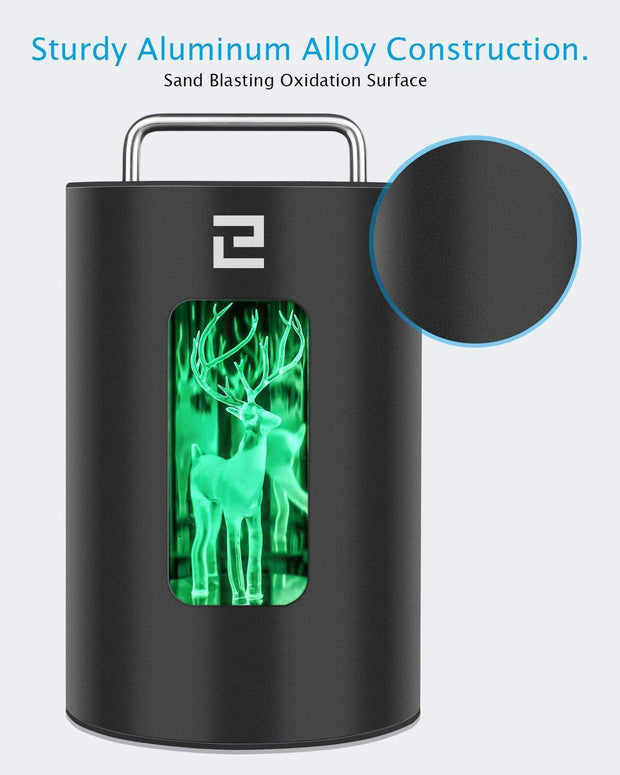

The shell of ELEGOO Mercury curing machine is made of light yet sturdy aluminum alloy with a sandblasting oxidation surface. The cylinder structure design and 360° turntable enable printed objects to be covered with a full illumination range.	ELEGOO UV curing chamber comes with a reflective sheet stuck solidly inside. Thanks to the reflective sheet, the UV lights Mercury outputs are steady and focused so that it’s able to cure the printed models in a short period.	The see-through window with particular optical filtering material not only assists you to observe the curing process but also helps keep 100% UV light away from leakage to ensure a great curing result.

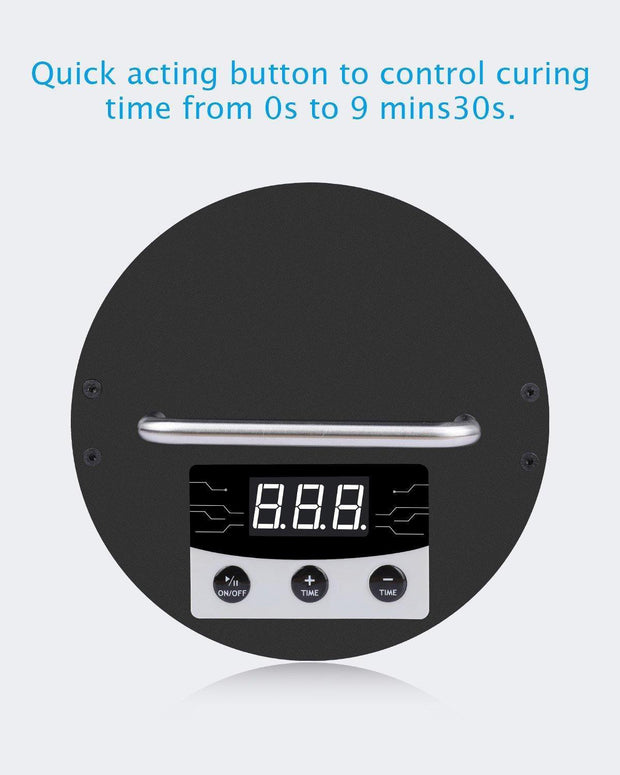

ELEGOO Mercury curing box features a real-time display screen. The LED time display enables you to control the curing time conveniently. In addition, the touch-sense buttons act quickly for you to easily adjust curing time from 0s to 9 mins30s.	The UV LED wavelength ranges of ELEGOO Mercury Curing machine are 405nm. It is compatible with ELEGOO resin and most standard 405nm resin, suitable for most LCD, DLP, or SLA 3D Printed objects in the market.	The light-powered turntable is able to absorb UV light to rotate without a battery. What’s more, ELEGOO Mercury curing box adopts two 405nm LED strip (14 UV LED lights in total) in order to fast cure and evenly illuminate printed models.

Description

• 【High Purification Efficiency】ELEGOO Mars Mate air purifier with a built-in high-density activated carbon filter can effectively absorb resin odor, with a purification efficiency of up to 95% for TVOC.
• 【Ultra Quiet & Low Power】Unique air duct design, automatic switching between low and high fan speed modes, and 6W ultra-low operating power can significantly reduce working noise to 35dB, energy-saving and quiet.
• 【Smart Reminder】The Mars Mate air purifier comes with a VOC sensor inside, which can effectively monitor the VOC concentration and make an early alert to remind you to replace the filter element, and you can reset the filter element through the filter reset button.
• 【Large Size】Designed with a large size of 210x247x410mm/8.26x9.72x16.14 inches for long-lasting and more efficient purification. Engineering plastic ABS air purifier body is durable to use.
• 【Long Filter Lifespan】The built-in activated carbon filter can be used for up to 2 months, without frequent replacement, and the filter replacement operation is simple and easy. (Please remove the protective plastic bag on the filter before use.)
• 【Wide Application】Designed specifically for the photocuring field. Compatible with ELEGOO Mars 4 DLP, Mars 4 MAX, Saturn 3 Series, Saturn 2, Saturn 8K, Jupiter, and other resin 3D printers with an extension port on the market.

Description

• Odor Control: Activated carbon can absorb and filter the irritant resin odor before they are ventilated throughout the cooling fan at a super adsorption rate, which gives you a fresh and safe user experience.

• Replaceable Carbon Filter: It comes with one activated carbon block which can be used for 3 to 6 months. The carbon can be replaced and need to be purchased separately.

• Long Endurance：With the 2000mAh battery, it can work continuously for at least 24H once fully charged via the power adapter included.

• Wide application：Not only for ELEGOO Mars Printer, it also can be used for LCD, DLP, MSLA Resin 3D Printer

• Well-Protected Package: Well-designed and sturdy box stuffed with all the parts, keeping it from damage during transportation.

ELEGOO Mini Air Purifier

ELEGOO Mini Air Purifier with activated carbon filter and universal adaptor is designed to absorb and filter the irritant resin odor when printing, which gives you a fresh and safe user experience.

Specifications:

Description

Description

Description

Description

Description

Description

Description

• Original Monochrome 2K LCD screen used on ELEGOO Mars 2 and Mars 2 Pro 3D
• 6 inches LCD with 1620x2560 high resolution ensures your printing with high precision
• Four times longer in lifespan and two times faster in printing speed than the regular RGB LCD 3D printers, which means higher printing efficiency, more stable performance, and less maintenance
• Assembly of the 2K LCD screen is straightforward and easy. (See tutorial video links in the description below)
• The 2K LCD screen kit is well-protected with an anti-static PE foam package in the box

How to replace the LCD on ELEGOO Mars 2 & Mars 2 Pro:

Note: Use the tape provided in the package to hold the mono LCD in place.

LCD Screen Specification:

• Size: 6.08 inch
• Resolution: 1620X2560
• Active area: 3.25 x 5.14 inches
• Appearance size: 3.43(W) x5.45(L) x0.05(T) inches
• Ratio: 16:10
• Weight: 32.8g
• Interface: MIPI

Component List:

• 1 x Monochrome 2K LCD
• Some double-sided adhesive

Description

Description

Description

Description

• Upgrade the large hexagon socket screw providing a more stable and long-lasting leveling result.

• The sandblasted surface can achieve higher adhesion during printing

• The perfect option for fast switching and cleaning for people who need high print efficiency.

• It comes with an Allen wrench for replacing or fastening the screws of the build plate.

• Compatible with ELEGOO Saturn LCD 3D Printer.

Product Description

For people who need to keep the printing ongoing while removing and cleaning models, a spare build plate seems to be a good option. ELEGOO build plate is dedicated to our beloved Saturn LCD 3D printer users. Large hexagon socket screws ensure a more stable and long-lasting leveling especially when you need to print large and solid models. Package Include: Build plate x 1Allen Wrench x 1

Description

• Upgrade large hexagon socket screw providing a more stable and long-lasting leveling result.
• The sandblasted surface can achieve higher adhesion during printing
• Perfect option of fast switching and cleaning for people who need high print efficiency.
• It comes with an Allen wrench for replacing or fastening the screws of the build plate.
• Compatible with ELEGOO Saturn LCD 3D Printer.

Product description

Description

• Compatible with ELEGOO Mars 3 and Mars 3 Pro LCD 3D printer.
• Size: 150*95.6*10mm.
• Upgrade large Allen socket screw for a more stable and durable leveling performance.
• Sandblasted surface with stronger adhesion is not easy to fall off during printing for a better printing result.
• Made of high quality aluminum alloy, it is non-deformation with good flatness, easy to install and clean, and durable for long-term use.
• It comes with an Allen key to replace or fasten the screws on the build plate.
• Fast installing and cleaning, perfect for those who prefer high printing efficiency.
