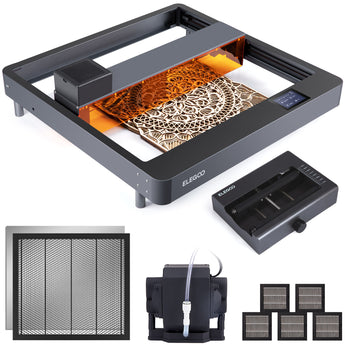

ELEGOO PHECDA 10W Laser Engraver & Cutter with Air Assist, Honeycomb Bed, Rotary Roller, Filter Cartridge, Adjustable Risers, CNC Laser Engraving and Cutting Machine for Wood and Metal (Package 2)
  • Free shipping


  • 1 - Year warranty

  • Secured payment


  • Lifetime support

$699.99

  • 10W/20W Output Power
  • 400 x 400 mm Engraving Area
  • 25,000 mm/min Engraving Speed
  • Smoke Filtering Exhaust
  • Multiple Operation Methods

US
10W
Package 2

Main Features:

【10W/20W Output Power】ELEGOO PHECDA laser engraver offers high performance and versatility with its 10W/20W output power. With a high energy density of 0.07mm*0.13mm focal spot (10W: 0.06mm*0.06mm), it can achieve speeds of up to 25,000 mm/min without compromising quality. This makes it capable of engraving or cutting a wide range of materials, including wood, bamboo, leather, kraft paper, stainless steel, and aluminum.

【Large Engraving Area】The machine also features a generous engraving area of 400 x 400 mm /15.75x15.75 inches, giving you the creative freedom to take on large projects or engrave multiple pieces at once. Plus, its height-adjustable laser head and adjustable risers enable you to engrave objects of different heights with ease.

【Smoke Filtering Exhaust】To ensure a clean and safe work environment, the laser head is equipped with a smoke exhaust filter and dual cooling fans that effectively absorb fumes and dust generated during engraving. The filter cartridge has a detachable cover for easy filter removal and replacement.

【Multiple Operation Methods】The ELEGOO Phecda laser engraver offers multiple operation methods for your convenience. You can control the machine via a mobile App for remote WIFI operation and custom engraving (your phone must be connected to the machine's wifi), transfer data using a USB cable or TF card, and it supports LightBurn and LaserGRBL software for added flexibility.

【Magnetic Shading Plate】One standout feature of the Phecda is its translucent magnetic shading plate. This innovative structure shields your eyes from harmful UV light and can also function as a laser filtering see-through cover to observe the light spot engraving track. Additionally, it doubles as a smoke collection device, improving the efficiency of the smoke filter. For even more safety, the machine comes with goggles to protect your eyes.

【Safety Protection】Safety is a top priority with the ELEGOO Phecda, thanks to its built-in sensor that immediately stops and beeps if flames are detected. If the machine is accidentally moved, tilted, or flipped during operation, it will pause and alarm.

High Precision Engraving & Cutting

The PHECDA laser engraver and cutter offers an output power of 20W/10W and a focal spot of 0.07mmx0.13mm (10W: 0.06mmx0.06mm), allowing you to create incredibly fine details in engraving or cutting jobs at a speed of up to 25000mm/min. The machine can handle a variety of materials, including up to 14mm basswood boards (10W output can cut up to 8mm basswood board).

400x400mm Engraving Space

The laser engraving machine has a large engraving area of 400x400mm/15.75x15.75 inches to meet daily DIY needs and perfect for processing large art projects. Add-ons like a rotary attachment for engraving on a cylindrical surface and an air assist for cleaner cuts are also available (Need to purchase separately).

Efficient Filtration System

The machine's smoke exhaust filter and two cooling fans on the laser head effectively filter and exhaust fumes and dust generated during engraving. After engraving, the fans work for one more minute to prolong fan service life, reduce noise, and save power. The filter cartridge has a detachable cover for easy filter removal and replacement.

Stable and Quiet Movement

The machine frame is constructed with aluminum alloy for durability and stability, especially when operating at high speeds. The high-quality silent driver motor reduces vibration and running noise. The aerospace-grade POM V-wheels are ultra-quiet, high-precision, and wear-resistant, while the two rows of 3 + 3 V-wheels of the Y axis, combined with the V-groove slide rail and high-tension synchronous belt, ensure stable, quiet, and precise movement of the laser module.

Unique Laser Head

The Satellite Orbit Module cools and protects delicate components in perfect synchronicity. Phecda's laser head features a horizontal structure and rail insertion design for easy replacement, a focal positioning bar for simple focal distance adjustment, and a detachable window mirror to prevent accuracy loss due to mirror damage.

Adjustable Laser Power and Speed

Real-time modification of the laser head's speed and power while marking the perimeter allows for accurate adjustments to the area to be engraved or cut and clear visibility of the engraved area boundary. The power and speed can also be adjusted during the engraving process.

More Practical Features

The magnetic plate on the Z-axis serves as both a laser filtering see-through shield to protect eyes from UV light and a smoke collection device to absorb smoke.

The machine has a built-in sensor that immediately shuts down and beeps if a fire is detected, and it will automatically stop and alarm when the laser engraver is moved, tilted, or flipped.

Phecda is compatible with LightBurn and LaserGRBL software and supports TF card/USB/Wi-Fi/APP control for Windows/Mac/iOS/Android. The engraving file format supports SVG/DXF/JPG/JPEG/PNG/BMP/TIF and more.

Comparision

Phecda(10W )

Phecda(10W x Air Assist Set )

Phecda PRO(20W )

Price

From $319.99

From $339.99

From $533.33

Laser module

output power

10W

10W

20W

Working area

400mm*400mm

400mm*400mm

400mm*400mm

Machine dimensions

673mm*660mm*200mm

673mm*660mm*200mm

673mm*660mm*200mm

Laser spot

0.06mm

0.06mm

0.07mm*0.13mm

Engraving depth

0-8mm

0-8mm

0-14mm

Focal length

35mm

35mm

40mm

Maximum

engraving speed

X axis: 25000mm/min

Y axis:18000mm/min

X axis: 25000mm/min

Y axis:18000mm/min

X axis: 25000mm/min

Y axis:18000mm/min

Laser head

height adjustment

0-75mm

0-75mm

0-75mm

Output voltage

24V

24V

24V

Machine power

55W

55W

85W

Connection method

TF card, USB cable, APP

TF card, USB cable, APP

TF card, USB cable, APP

Support system

windows/mac/ios/android

windows/mac/ios/android

windows/mac/ios/android

Air Assist Set

APP control

Smoke filtering

File types

SVG/DXF/JPG/JPEG/PNG/BMP/TIF

SVG/DXF/JPG/JPEG/PNG/BMP/TIF

SVG/DXF/JPG/JPEG/PNG/BMP/TIF

Weight (Basic)

8.6kg

9.8kg

10.3kg
